PLUSWOOD LOUVER
Exterior / Outdoor Living
Offer a permanent wood-like beauty combined with exceptional safety features, including self-extinguishing properties.
WHAT IS PLUSWOOD louver?
Pluswood Louvers are made from recycled wood, combining the durability and maintenance‑free benefits of resin with the texture and color of natural wood.
Recycled wood typically consists of fine wood particles dispersed in plastic, so its performance is largely governed by the properties of the plastic layer.
With added self‑extinguishing properties, Pluswood Louvers offer improved fire safety and are suitable for public and commercial spaces.
Key Features of Pluswood Louver
High Rigidity & Low Thermal Expansion
The base material utilizes a specialized ABS resin with high rigidity and low linear expansion. This provides high structural strength, allowing for larger installation spans and a standard long-length format of 4 meters. Furthermore, compared to olefin-based resins, the flexural modulus is more than double, and the linear expansion coefficient is less than half.
Impact Resistance
Pluswood Louvers are more resistant to cracking than ceramic alternatives and offer excellent impact strength. Additionally, their lightweight nature minimizes the structural load on the building.
Versatile Textures
While most recycled wood products are limited to a “textured” (brushed) finish, Pluswood Louvers feature a scratch-resistant surface available in both Smooth (Non-textured) and Textured finishes. We also offer wood-grain coloring for a premium aesthetic.
Clean, Hidden Fastening System
For hollow profiles, we utilize a rear-mounting system with “Mecha-nuts.” This conceals all mounting hardware for a sleek, seamless appearance. With a pull-out strength of 200–300 kg, the system provides more than enough structural integrity to withstand high wind pressures.
Color Lineup
*Please note that colors may appear differently depending on your monitor settings. We recommend requesting a physical sample for accurate color matching.
CN (Non-textured) Type (6 Colors Available)
CN (Textured) Type (6 Colors Available)
Product Specifications
| Product Diagrams | Model Name | Color | Length (mm) | Quantity /pack |
Remarks |
|---|---|---|---|---|---|
|
Louver JF3050CN |
[Standard Stock Items] LB、DB、RB [Custom Order] GY、BK、WH |
4000 | 153 /pallet |
Self-extinguishing Weight：0.96kg/m Dedicated End Caps available. Individual unit shipping available. |
| Louver JF3050CA (Surface Texture) |
|||||
|
Louver JF5050CN |
[Standard Stock Items] LB、DB、RB [Custom Order] GY、BK、WH |
4000 | 119 /pallet |
Self-extinguishing Weight：1.29kg/m Dedicated End Caps available. Individual unit shipping available. |
| Louver JF5050CA (Surface Texture) |
|||||
|
Louver JF3090CN |
[Standard Stock Items] LB、DB、RB [Custom Order] GY、BK、WH |
4000 | 72 /pallet |
Self-extinguishing Weight：1.69kg/m Dedicated End Caps available. Individual unit shipping available. |
| Louver JF3090CA (Surface Texture) |
|||||
|
Louver JF5095CN |
[Standard Stock Items] LB、DB、RB [Custom Order] GY、BK、WH |
4000 | 54 /pallet |
Self-extinguishing Weight：2.33kg/m Dedicated End Caps available. Individual unit shipping available. |
| Louver JF5095CA (Surface Texture) |
|||||
|
Louver JF50H50CN |
[Standard Stock Items] LB、DB、RB [Custom Order] GY、BK、WH |
4000 | 30 /pallet |
Self-extinguishing Weight：3.56kg/m Dedicated End Caps available. Individual unit shipping available. |
| Louver JF50H50CA (Surface Texture) |
|||||
|
Louver JF50N10CA (Surface Texture) |
[Custom Order] LB、DB、RB, GY, BK, WH |
4000 | 28 /pallet |
Self-extinguishing Weight：4.60kg/m Reinforcement backing may be required for installation. |
|
Louver JF50S00CA (Surface Texture) |
[Custom Order] LB、DB、RB, GY, BK, WH |
4000 | 24 /pallet |
Self-extinguishing Weight：6.60kg/m Reinforcement backing may be required for installation. |
|
Louver JF75S30CA (Surface Texture) |
[Custom Order] LB、DB、RB, GY, BK, WH |
4000 | 21 /pallet |
Self-extinguishing Weight：7.19kg/m Reinforcement backing may be required for installation. |
|
Deck ND-JF2726AN (Surface Texture) |
[Standard Stock Items] LB, DB, RB [Custom Order] GY, BK, WH |
2000 | 102 /pallet |
Self-extinguishing Weight：2.28kg/m The color tone differs from other louvers. |
|
Louver F30H00MN | [Standard Stock Items] LB, DB |
4000 | 2 | Weight：2.4kg/m |
|
Louver F3070MN | [Standard Stock Items] LB、DB、RB |
4000 | 3 | Weight：4.60kg/m |

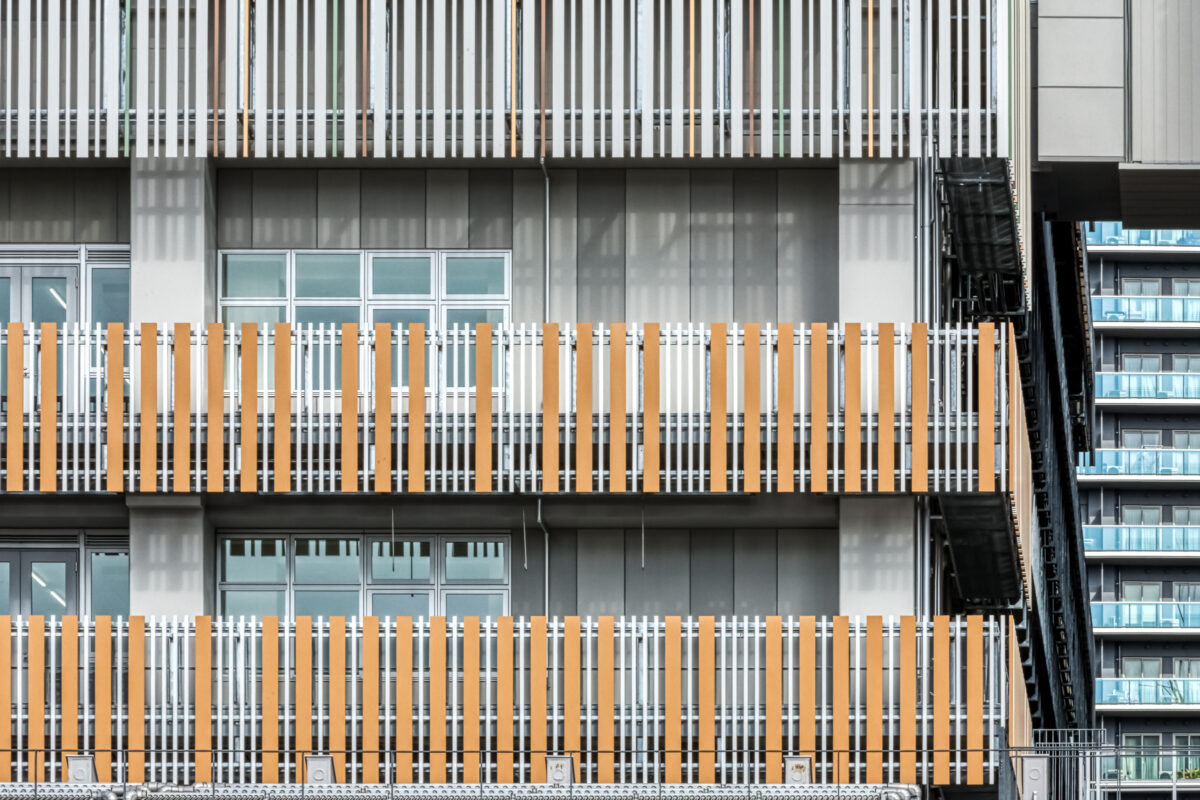

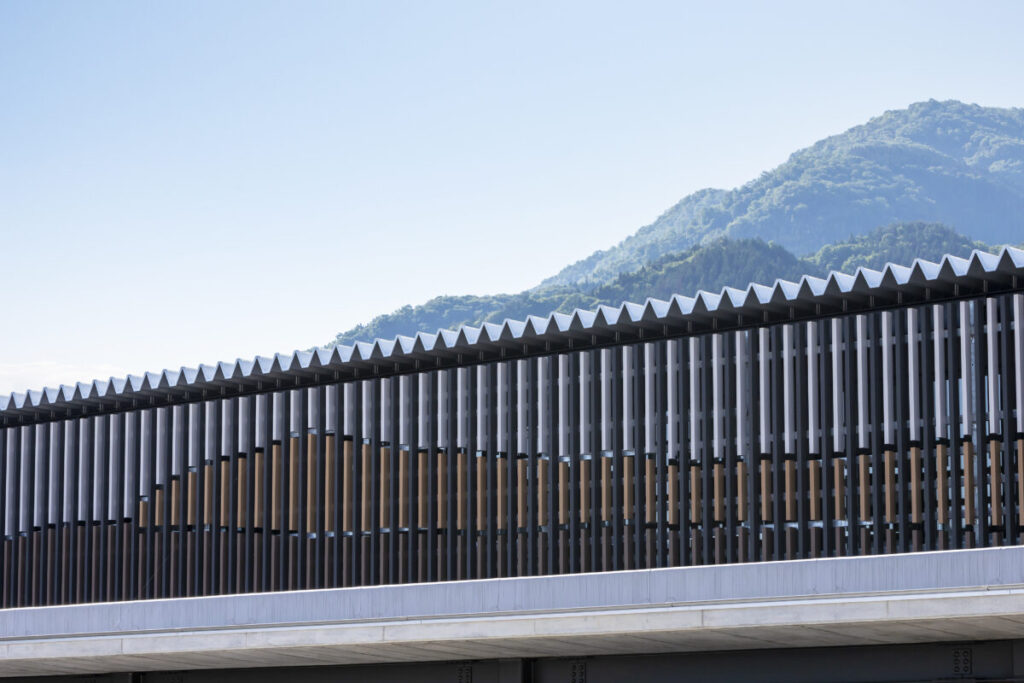

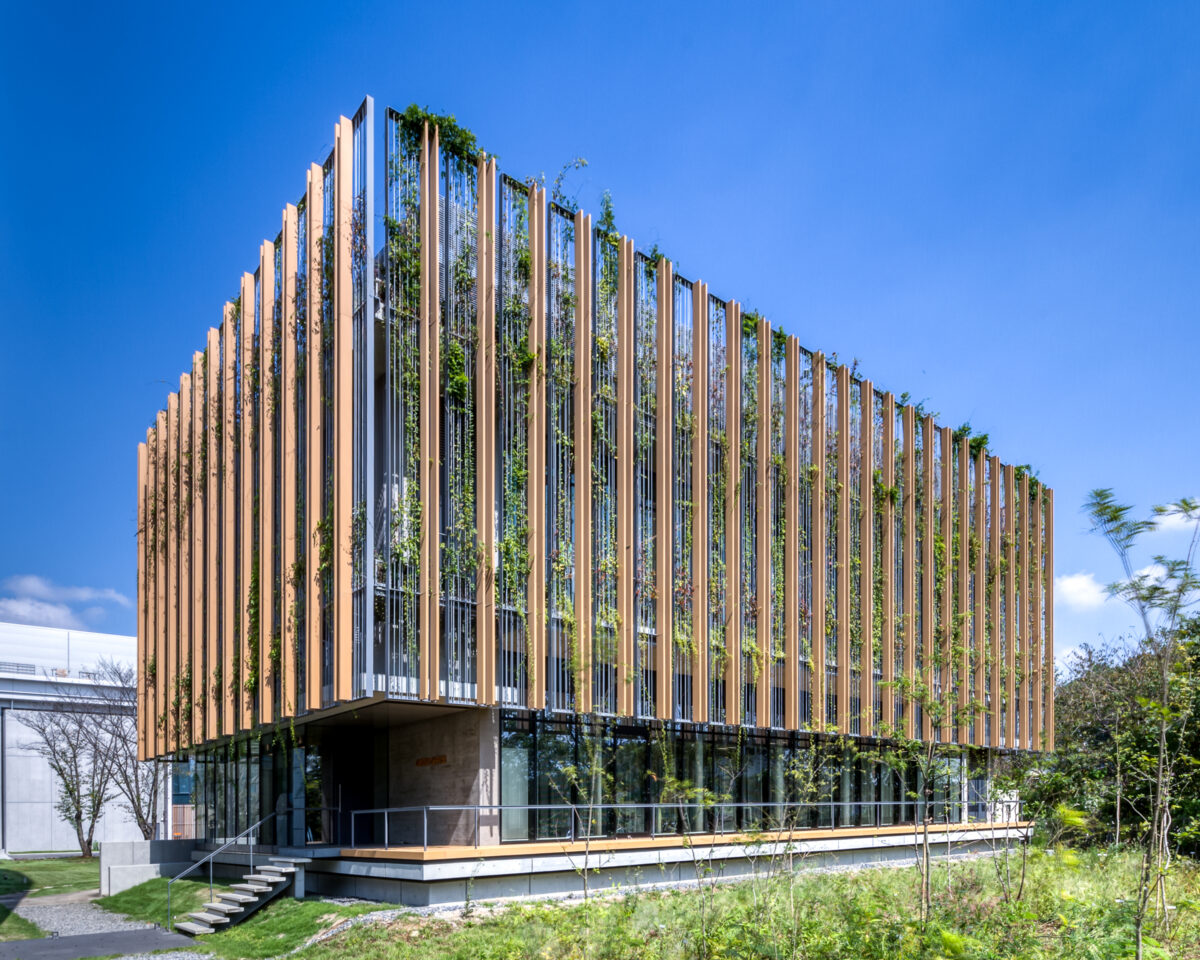

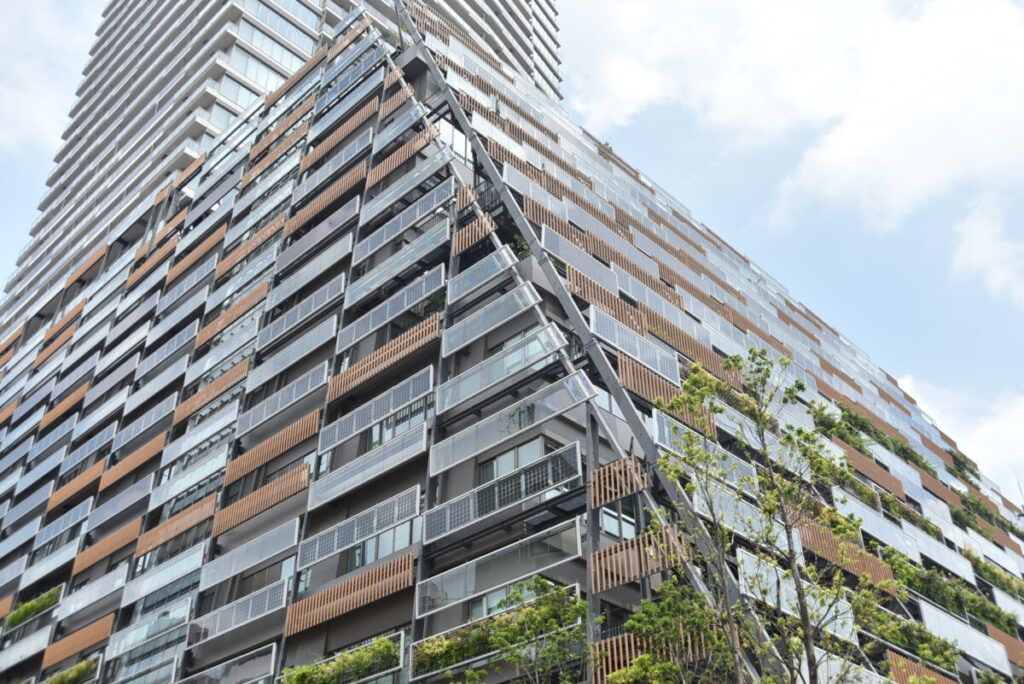

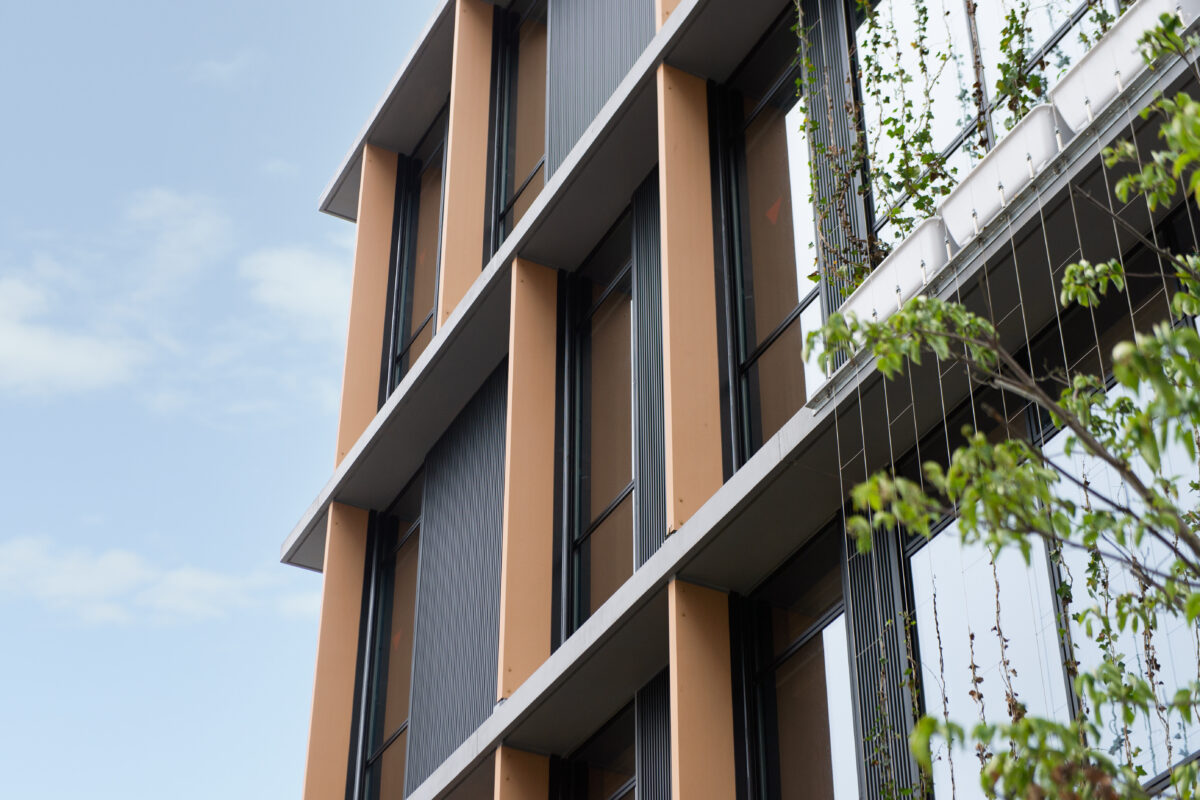

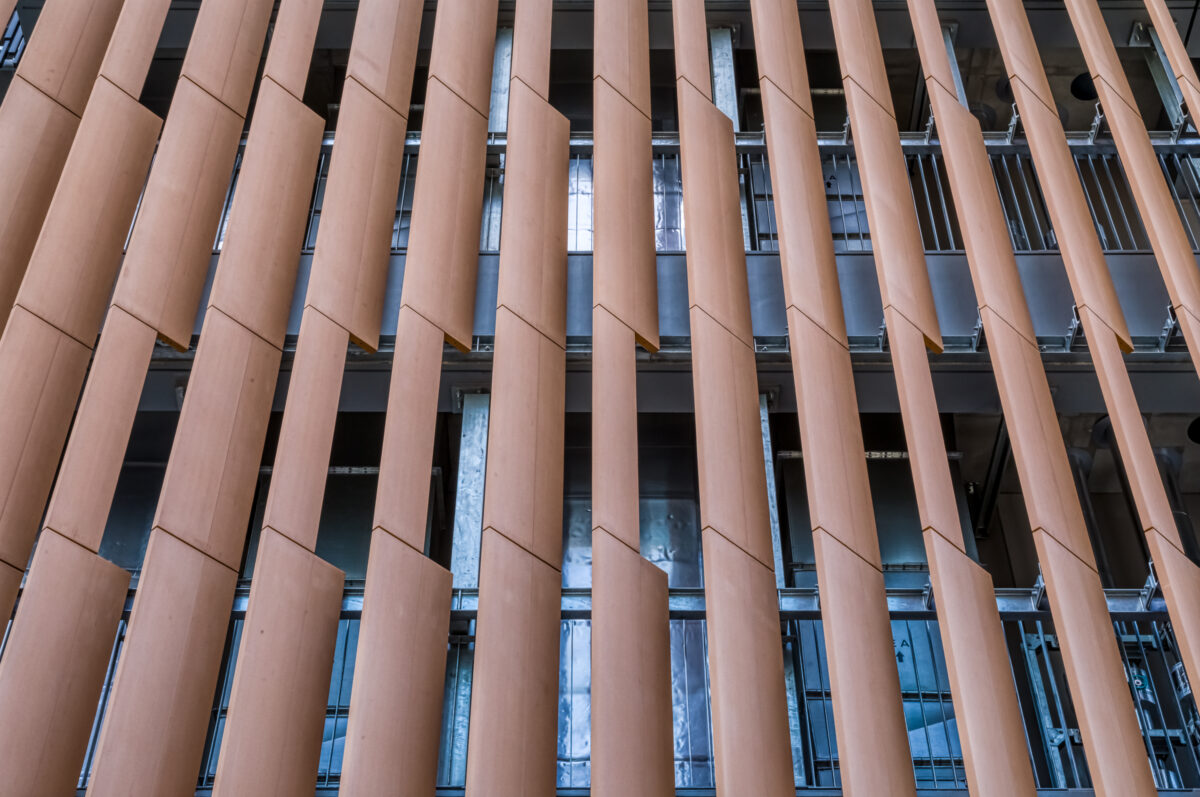

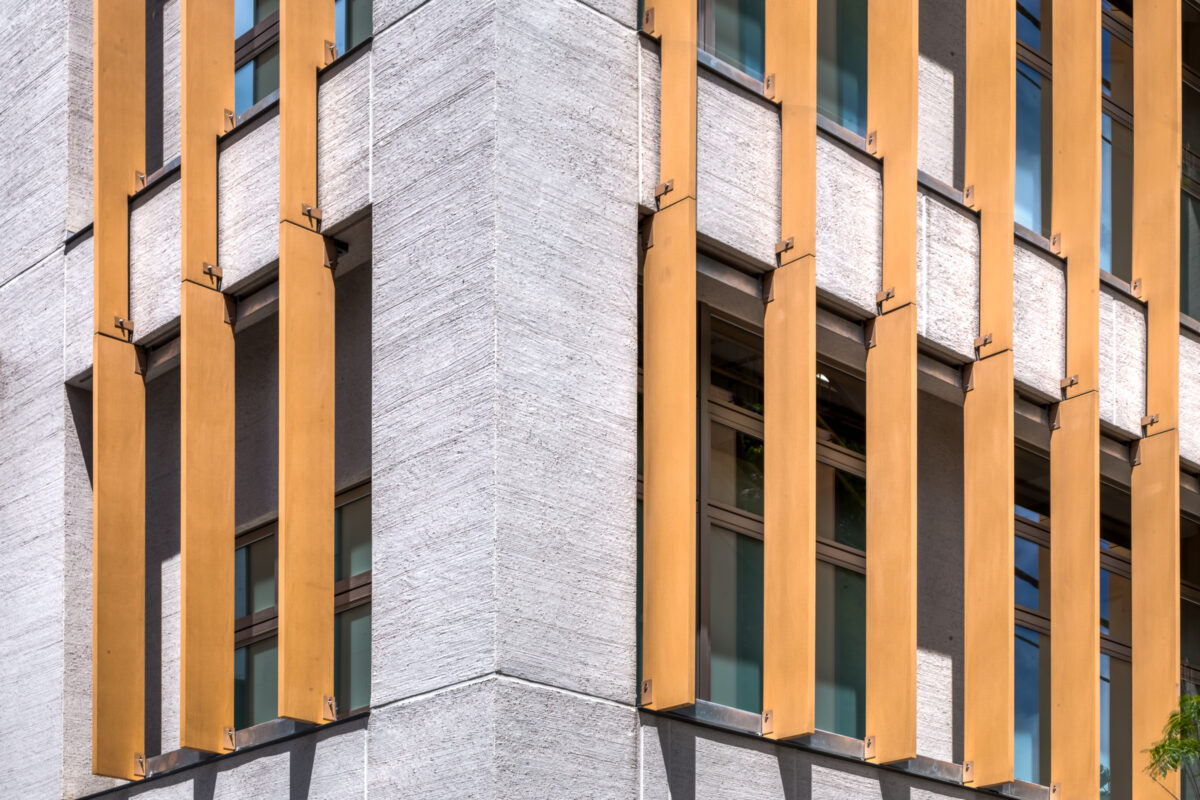

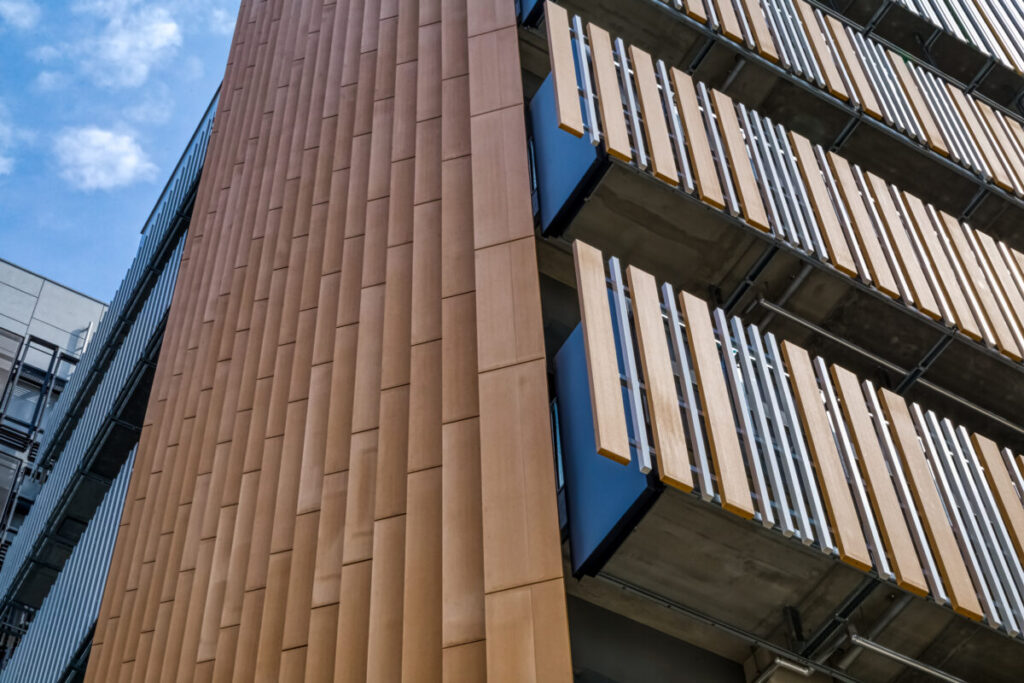

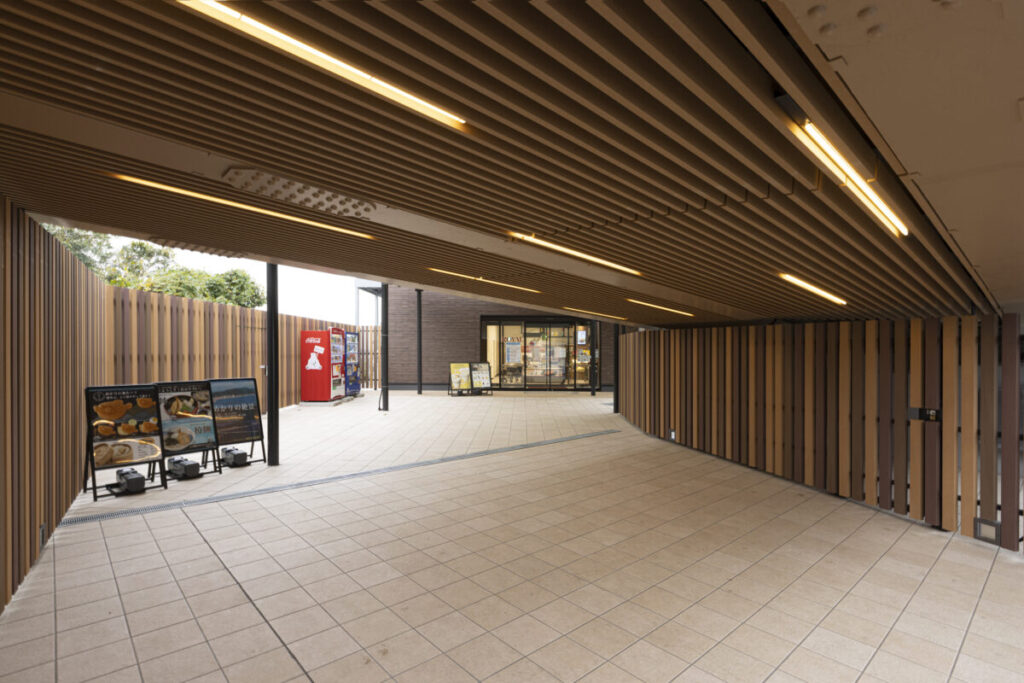

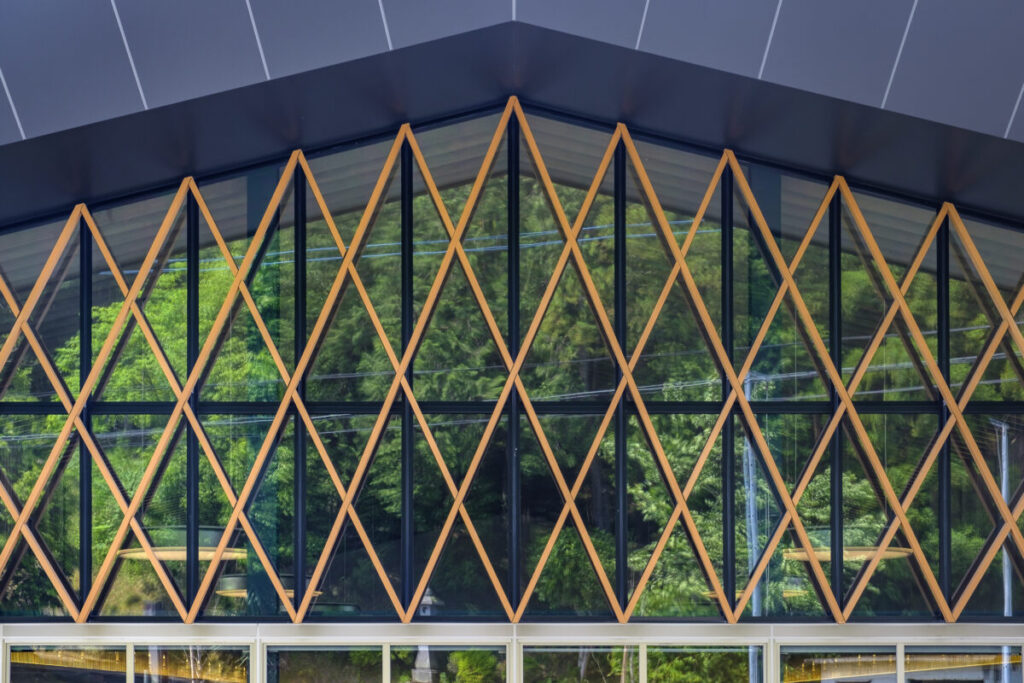

Project Gallery
Project Examples Featuring This Product
