Silent Drop
Soundproofing / Sound Insulation
By simply placing it in the ceiling, it reduces heavyweight floor impact sounds such as footsteps or jumping from the floor above. It is also effective for condominium renovations.
Are you facing these challenges with inter-floor noise control?
✓ Want to implement sound insulation from the interior without modifying the structural frame.
✓ Already using sound insulation mats but want an additional backup measure.
✓ Seismic reinforcement is the priority, so adding weight to the building is undesirable.
✓ Want to avoid adding a concrete slab?
Sound Insulation That Can Be Installed From The Interior

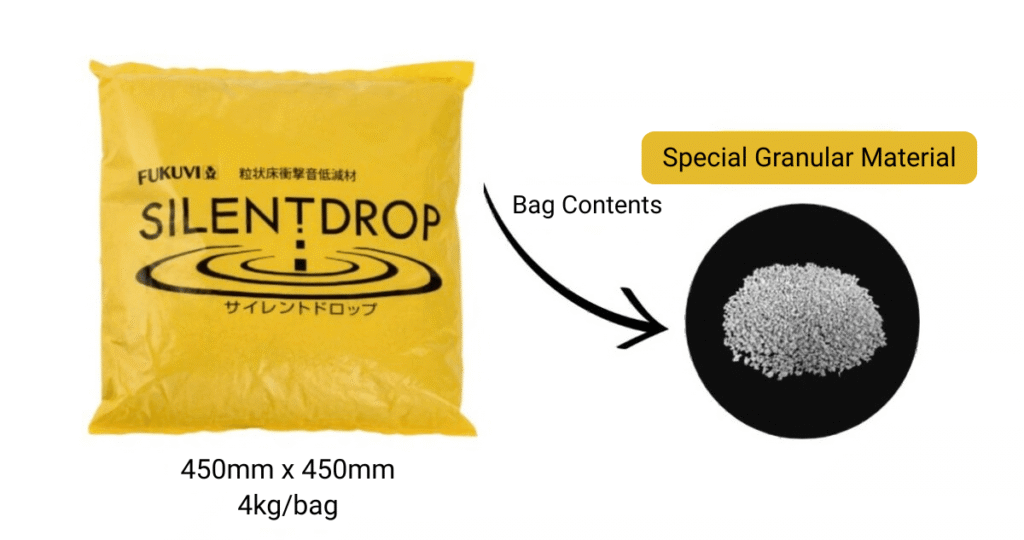

“Silent Drop” is a floor impact sound reduction material based on a new concept of controlling sound through special granules. By simply placing it in the ceiling plenum, it reduces heavyweight floor impact sound, which was previously considered difficult to mitigate.

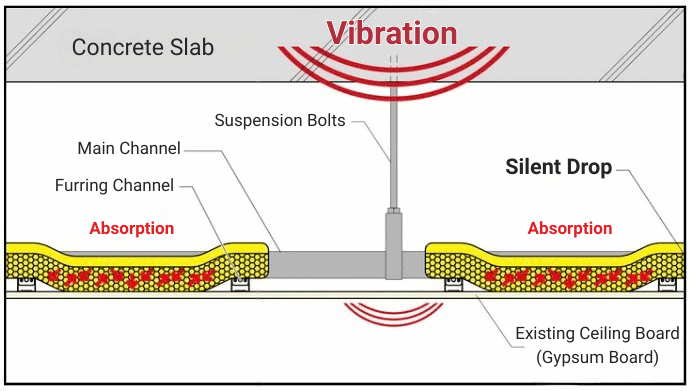

Sound Reduction Mechanism

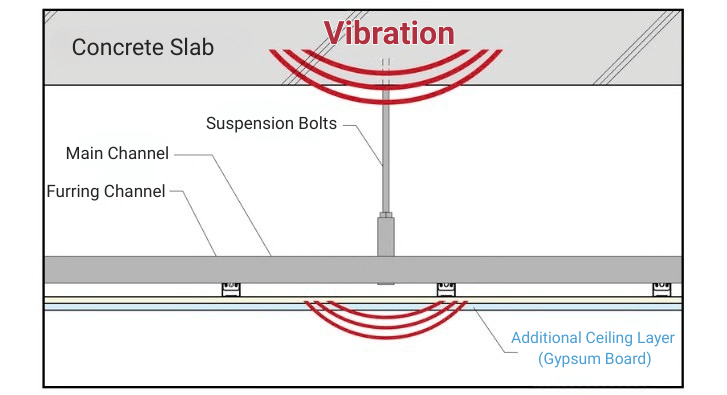

Heavyweight floor impact sounds, such as footsteps, travel as vibrations.
The vibration of the concrete slab is transmitted through the suspension bolts to the ceiling board, where it becomes audible sound.
By placing Silent Drop on the furring channels, the contents (through the vibrational friction of the granules) absorb the vibrations transmitted from the suspension bolts, suppressing the oscillation of the ceiling board and reducing noise.

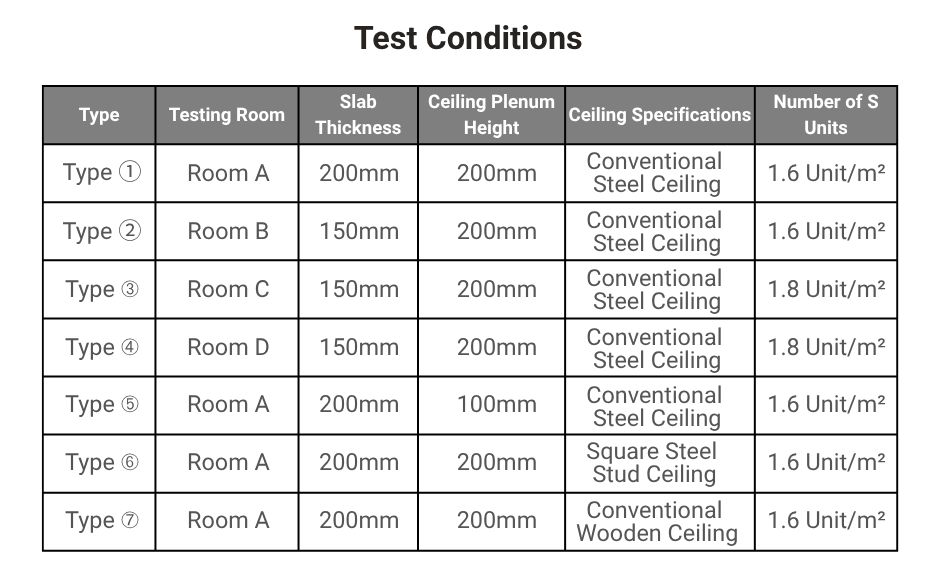

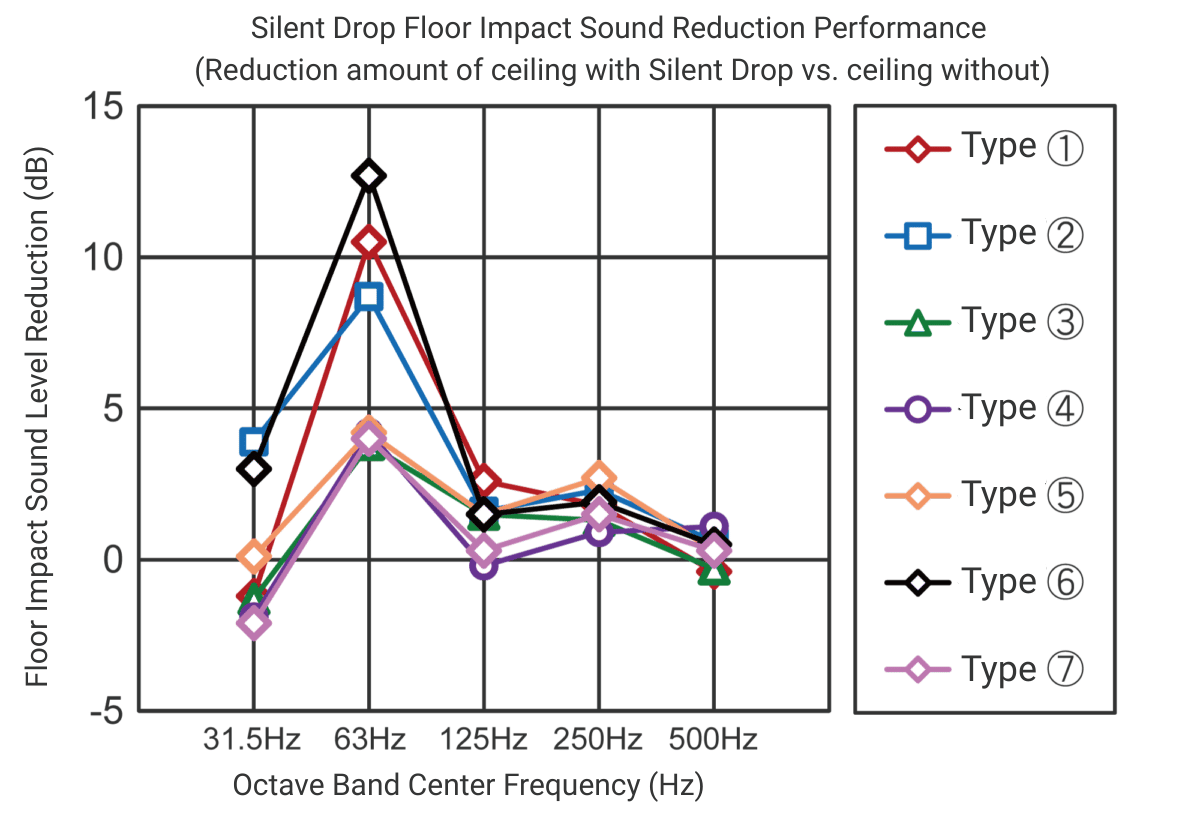

Performance (Test Data)
Performance has been verified to reduce heavyweight floor impact sound by approximately 5–10 dB
※ Test results shown are based on specific conditions and are not guaranteed. Performance may vary depending on ceiling specifications and site conditions.
Field Test [Sound Reduction Demonstration]
Sound Insulation Performance Measurement Video (Approx. 2m30s)
Silent Drop Features

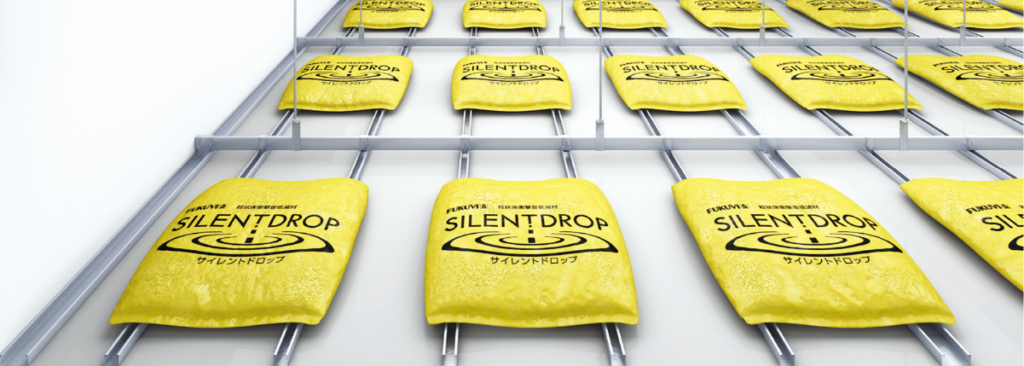

① Simply place on the ceiling

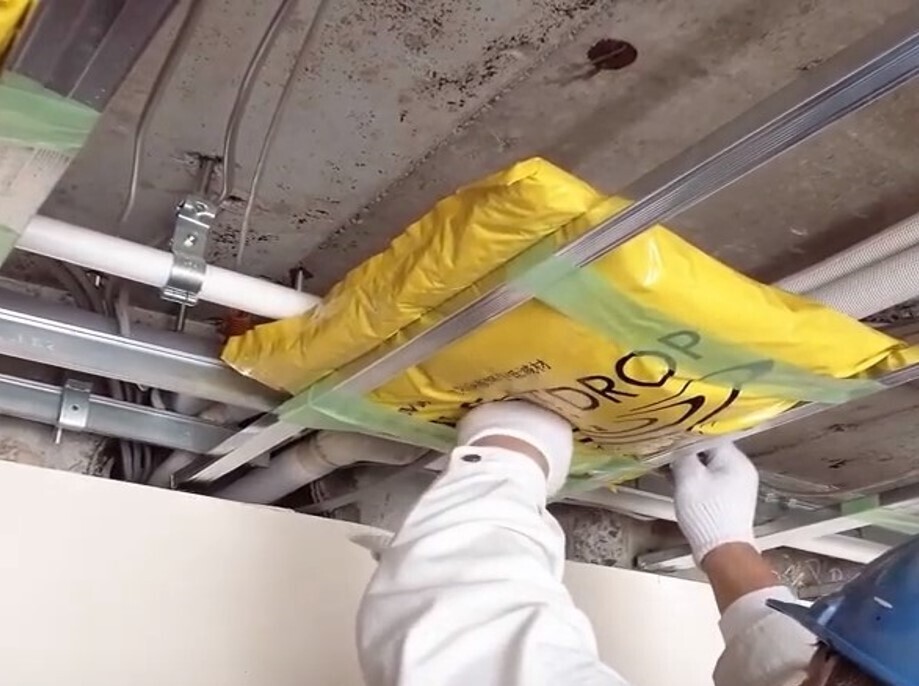

A simple construction method that only requires placement on the ceiling. It can be used not only for new construction, but also for remodeling and renovations. In condominiums, etc., installation can be performed from the floor below.

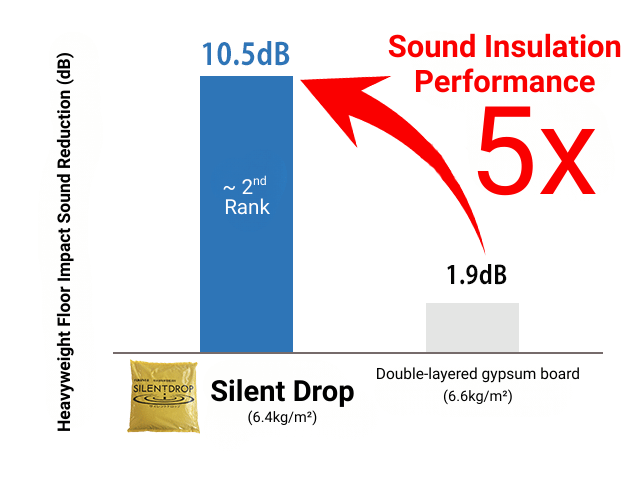

➁ 5 times the performance of double ceilings
Despite weighing +6.6kg/m², which is equivalent to a double ceiling (double-layered gypsum board), the sound insulation effect (heavyweight floor impact sound reduction) is approximately 5 times greater.
③ Approx. 8kg/m²
At approximately 8kg/m², it is much lighter than concrete slab topping (approx. 120kg/m²). Furthermore, since it is installed behind the double ceiling, it does not interfere with the fit-out of other building materials or equipment.

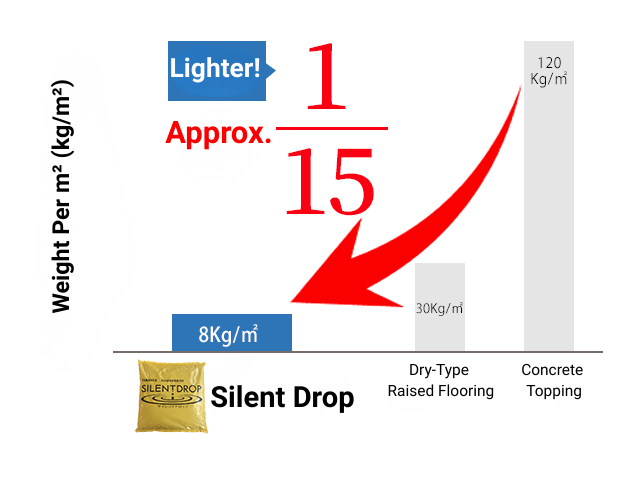

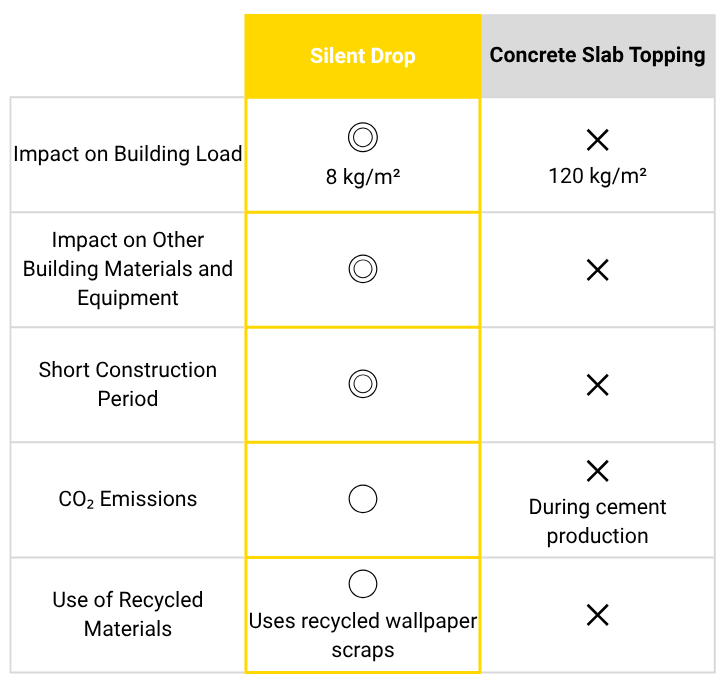

Comparison with Concrete Slab Topping
Compared to concrete slab topping, the structural load is only approx. an additional 8kg per 1m². It is chosen because it requires only about 1/15th of the load compared to concrete topping and can be implemented from the interior side.
User Interview
Chatelet Shinanomachi (Tokyo)
Silent Drop was adopted in the ceiling plenum of all rooms as a soundproofing measure during a full renovation. Two years after adoption, we interviewed the owner about their experience after construction.
Product Specifications
|
Product Name |
Dimensions |
Code |
Package Contents |
Individual Shipment |
|
Silent Drop |
450mm x 450mm |
SD450 |
4 Rolls |
X |
|
Line Guard K-01 for Silent Drop |
50mm (Width) x 25m |
SDLGK50 |
5 Rolls |
X |

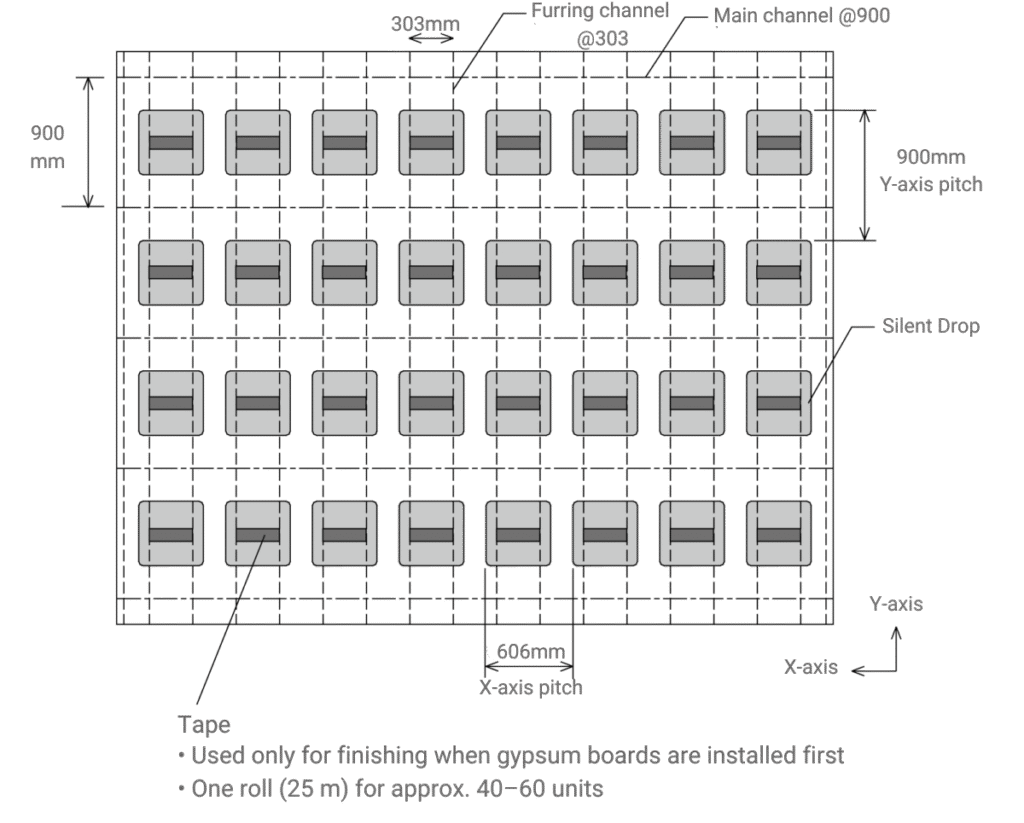

Use 1.5 – 2 units per m², adjusted for space layout and light placement.
※ It is not necessary to lay them out side-by-side without gaps, as the goal is to reduce vibrations transmitted through the furring channels.
※ For the Silent Drop layout pitch, set the direction perpendicular to the furring (X-direction) at 606mm and the direction parallel to the furring (Y-direction) at 900mm so that there are 1.5 to 2 units per 1m².
※ This product is intended for indoor ceiling applications only and must not be used on other areas.
※ For details on installation procedures, please refer to the installation manual.
