NON-COMBUSTIBLE THERMAL INSULATED PANELS SHIZUCLEAR
Spandrel
Solves ceiling condensation, mold, and rust issues in production facilities, contributing to the creation of hygienic environments where sanitation is critical. The proprietary hydrophilic coating makes dirt easier to remove and simplifies daily maintenance.
Solutions for Ceiling Issues in Production Facilities
Condensation Control
Suppresses condensation caused by steam and temperature differences within rooms.
Moisture does not bead into droplets but flows easily along slopes, preventing unhygienic conditions caused by dripping condensation water.
Mold Control
Moisture does not stagnate; water flows together with contaminants, preventing dirt from settling on ceilings and reducing the risk of mold-prone unsanitary environments.
Rust Control
In harsh environments affected by temperature, humidity, and chemicals, the use of rust-resistant metals and coatings prevents corrosion and reduces the risk of foreign matter contamination from deteriorated ceiling materials.

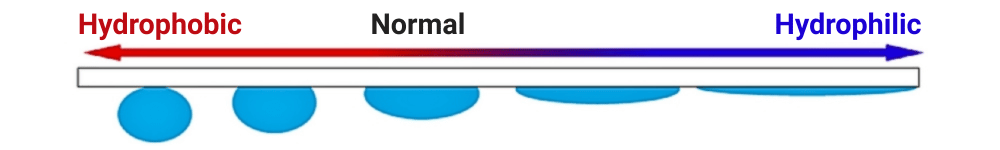

Hydrophilic Functionality Due To『Hydrophilic Coating』
Hydrophilic coating is a coating that creates a surface where water spreads and flows easily. Condensation water does not form droplets and spreads over the surface, suppressing dripping. By preventing water droplets from falling from the ceiling, it helps reduce foreign matter contamination risks. As water flows along the slope, it penetrates beneath dirt, lifting and washing it away. Remaining dirt can be easily wiped off, making maintenance for a clean environment easier.
Please watch the video below to see how easily dirt is removed.
Shizuclear Non-Combustible – Comparison
Dirt removal performance test
※Audio may play during video playback. Please be mindful of your surroundings.
※The video shows test results only.
Actual performance may vary depending on environment and conditions.
Introducing Six Product Features
Cleanability (foreign matter contamination prevention)
In facilities where hygiene is critical, the presence of dirt must be avoided. Shizuclear Non-Combustible features a hydrophilic coating that prevents dirt from adhering, greatly contributing to the maintenance of hygienic environments.
Thermal insulation (condensation control)
Ceilings are prone to condensation and mold due to indoor temperature and humidity conditions and generated steam.
As a lightweight insulated panel filled with insulation across its full width, Shizclear Non-Combustible provides excellent thermal performance and is effective for condensation control.
In combination with a vapor barrier sheet, airtightness is improved, contributing to reduced air-conditioning costs.
Corrosion resistance (rust prevention)
Depending on temperature, humidity, and chemical exposure, some metals used in facilities are prone to rust, increasing the risk of foreign matter contamination.
Shizuclear Non-Combustible uses “Corrosion-Resistant Aluminum” and offers excellent chemical resistance.
In addition, its three-layer surface coating structure provides a surface that is highly resistant to corrosion.
Click here for the chemical resistance list.
Safety
Compared to other ceiling materials, it is lightweight, resistant to cracking, and offers excellent seismic performance.
≪Regarding seismic performance≫
Large-scale full-scale seismic vibration tests have been conducted under Notification No. 771 specifications.
※Please refer to the catalog for details.
Non-combustibility
Under the Building Standards Act, ceiling materials in rooms with fire-using equipment must be quasi-non-combustible. Shizuclear Non-Combustible has obtained Non-Combustible Certification and can be safely used in facilities that handle fire.
Ease of installation
Extremely lightweight and easy to handle; can be cut with a standard circular saw, offering excellent workability and flexibility for various installation details. Installed on LGS (light-gauge steel) substrates, it is also suitable for renovation projects.
Specifications
★Indicates made-to-order products.
Please confirm delivery time before placing an order.
| Model Name | Dimensions | Code | Color Code | Quantity /pack |
Single Piece Shipment |
|---|---|---|---|---|---|
| Jointed Type | 3,000mm | SZFA3□ | W Z |
12 pieces | 〇 |
| 4,000mm | SZFA4□ | ||||
| ★5,000mm | SZFA5□ | 9 pieces | |||
| ★6,000mm | SZFA6□ | ||||
| ★3,000mm | SZFA3□ | SL ST AB |
|||
| ★4,000mm | SZFA4□ | ||||
| ★5,000mm | SZFA5□ | ||||
| ★6,000mm | SZFA6□ | ||||
| Jointless Type | 3,000mm | SZFA3□ | W Z |
12 pieces | |
| 4,000mm | SZFN4□ | ||||
| ★5,000mm | SZFN5□ | 9 pieces | |||
| ★6,000mm | SZFN6□ | ||||
| ★3,000mm | SZFN3□ | SL ST AB |
|||
| ★4,000mm | SZFN4□ | ||||
| ★5,000mm | SZFN5□ | ||||
| ★6,000mm | SZFN6□ |
Notes on ordering
※Please specify the color code in the □ section of the code number.
※For loose shipments, even if standard packaging is included in one order, a separate packaging fee of ¥3,000 will be charged. For products exceeding 4 m, shipping costs will be quoted separately.
Regarding made-to-order products
※Order changes or cancellations cannot be accepted after placement.
※Jointed type: available from 200 m²; jointless type: available from 190 m² (both require a total length of 1,000 m or more).
