clean line 100-30r
Trims / Joints / Substrate Materials
Ideal for dry areas in food factories and pharmaceutical plants.
・Solid construction with gap-free installation reduces the risk of becoming a breeding ground for insects, helping maintain a clean environment.
・Made of resin with low susceptibility to condensation, suppressing mold growth.
・Simple installation using only adhesive and sealing.
Ideal Applications for This R‑Shaped Skirting
・As R-shaped skirting for dry areas where water is not used.
・As a renovation skirting material where existing skirting has deteriorated over time.
・For factories that handle chemicals.
Clean Line Features
1. Easy-to-clean R shape

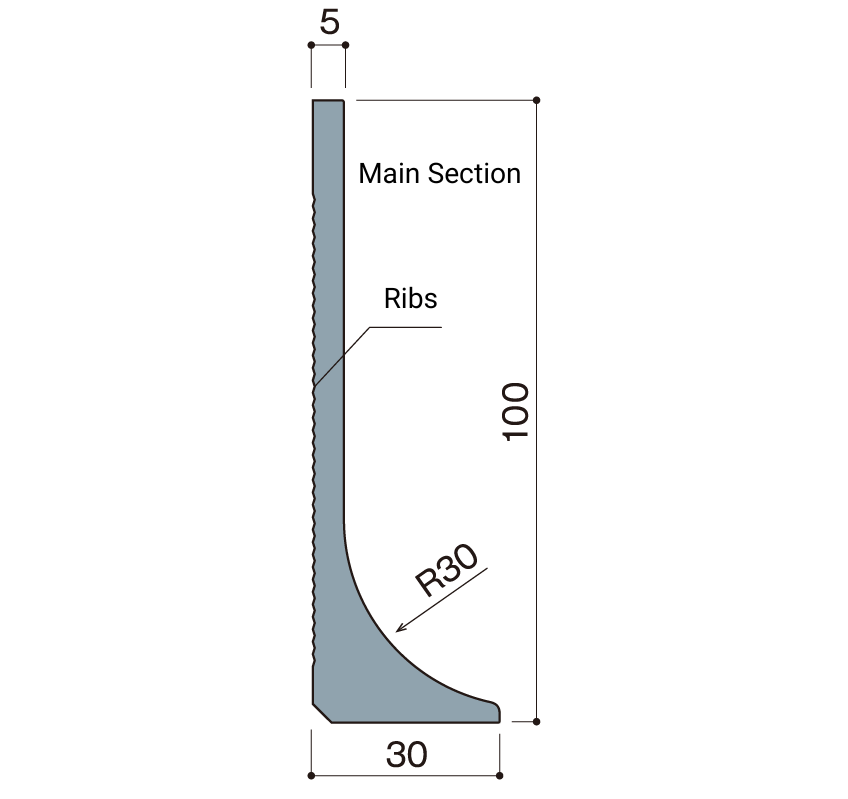

The corner-free design prevents dust accumulation and allows easy cleaning. Slim design with a projection of 30 mm from the wall.
2. Prevents insect intrusion
With a solid (non-hollow) structure and gap-free installation, it is unlikely to become a breeding ground for insects, helping maintain a clean environment.
3. Excellent chemical resistance
Common detergents can be used for cleaning without issues.
4. Resin construction resistant to condensation
Because condensation is less likely to occur, mold growth is suppressed throughout the year.
5. Complete range of corner and end components

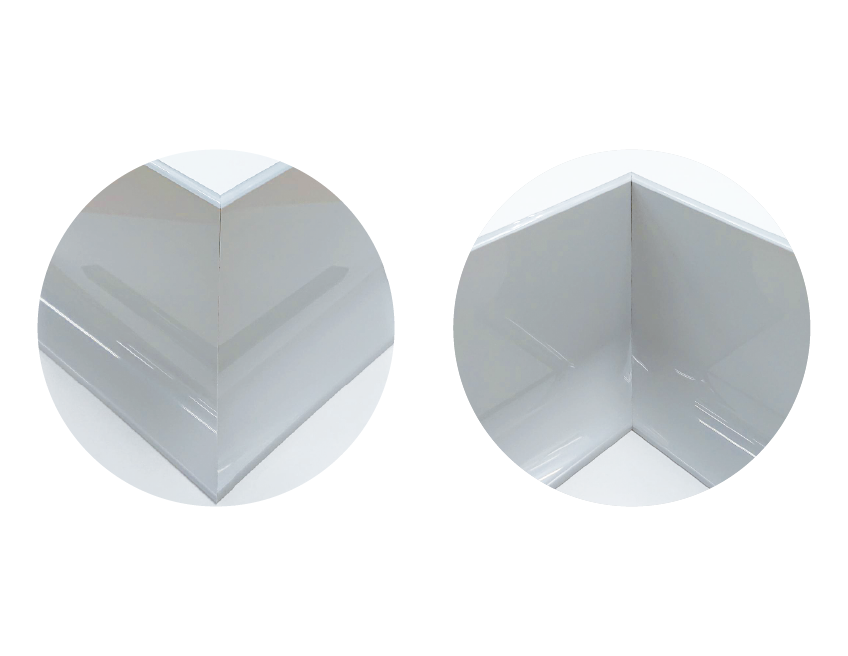

Outside corners, inside corners, and end pieces are available as dedicated components, enabling easy installation and a clean finish.
Installation Procedure

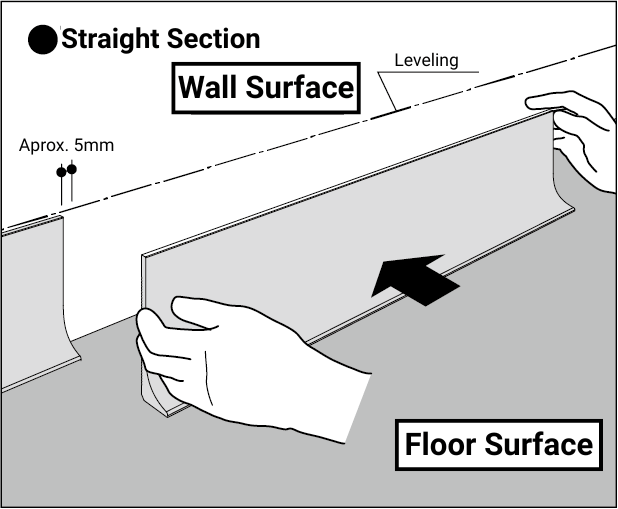

① Positioning the main body
② Applying adhesive
③ Fixing with adhesive

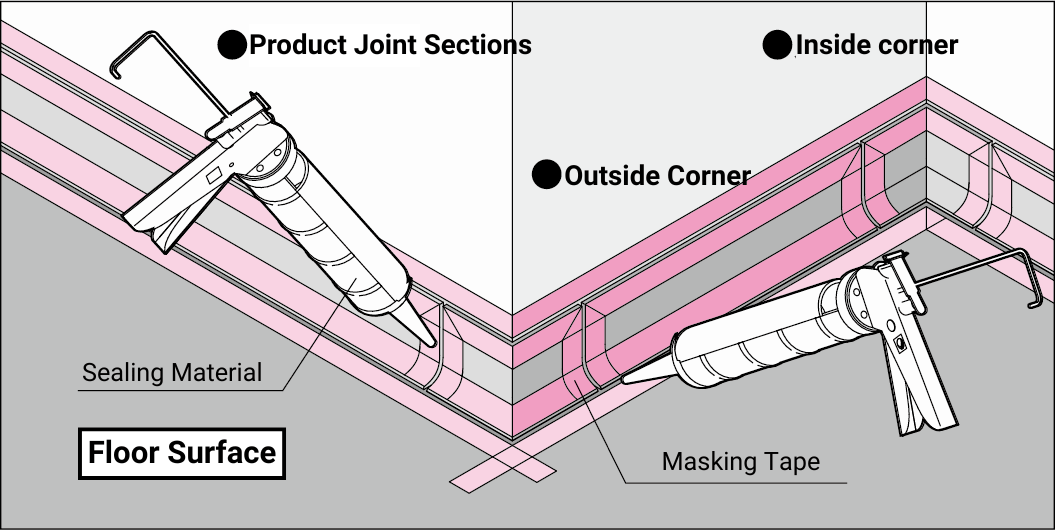

④ Sealing treatment
Product Specifications
| Model Name | Product Diagrams | Dimensions | Material | Color | Quantity /pack |
Single Piece Shipment |
|---|---|---|---|---|---|---|

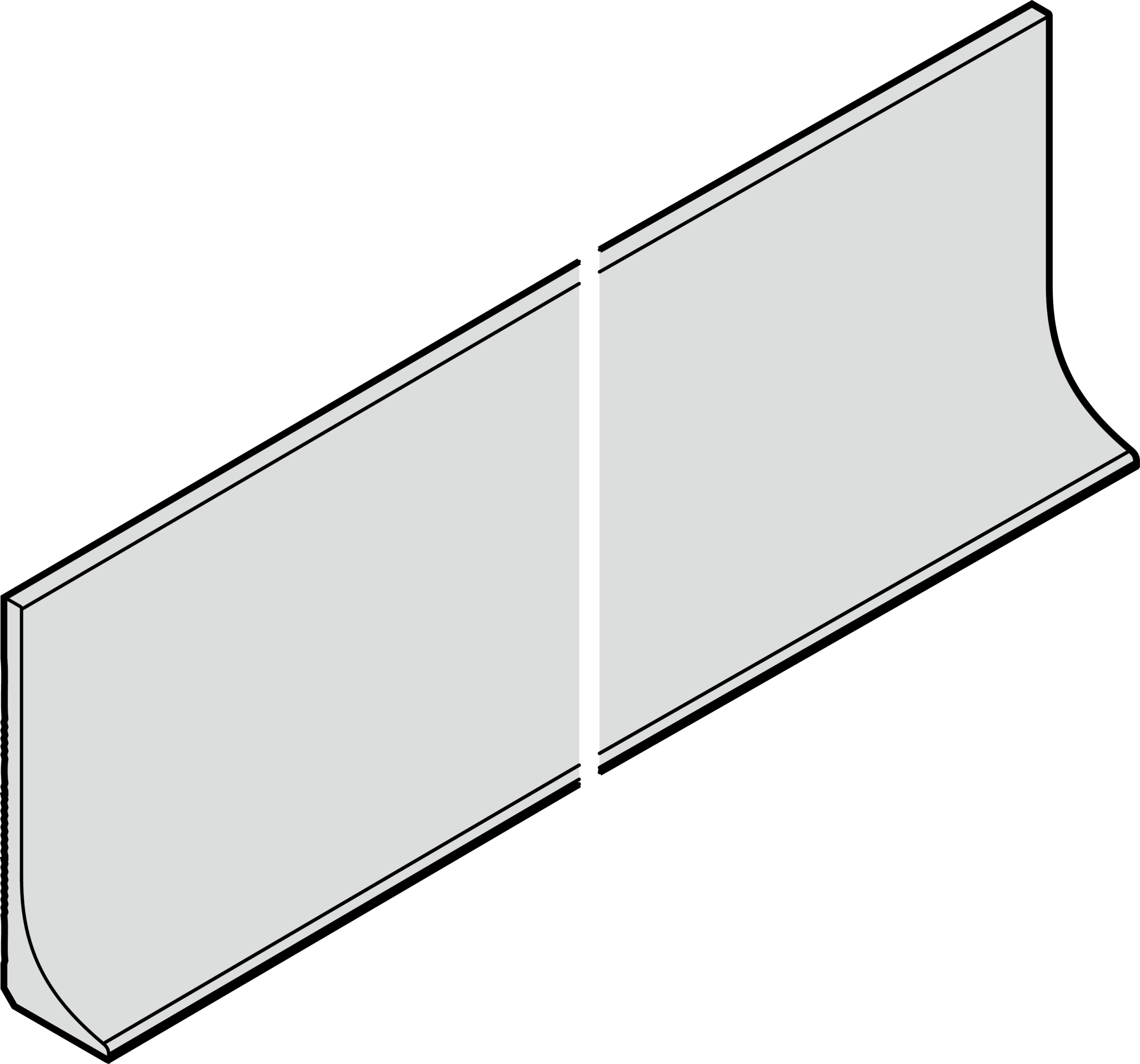

| Clean Line 100-30R |
|
2000mm | PVC | Light Gray | 10 pieces | 〇 |

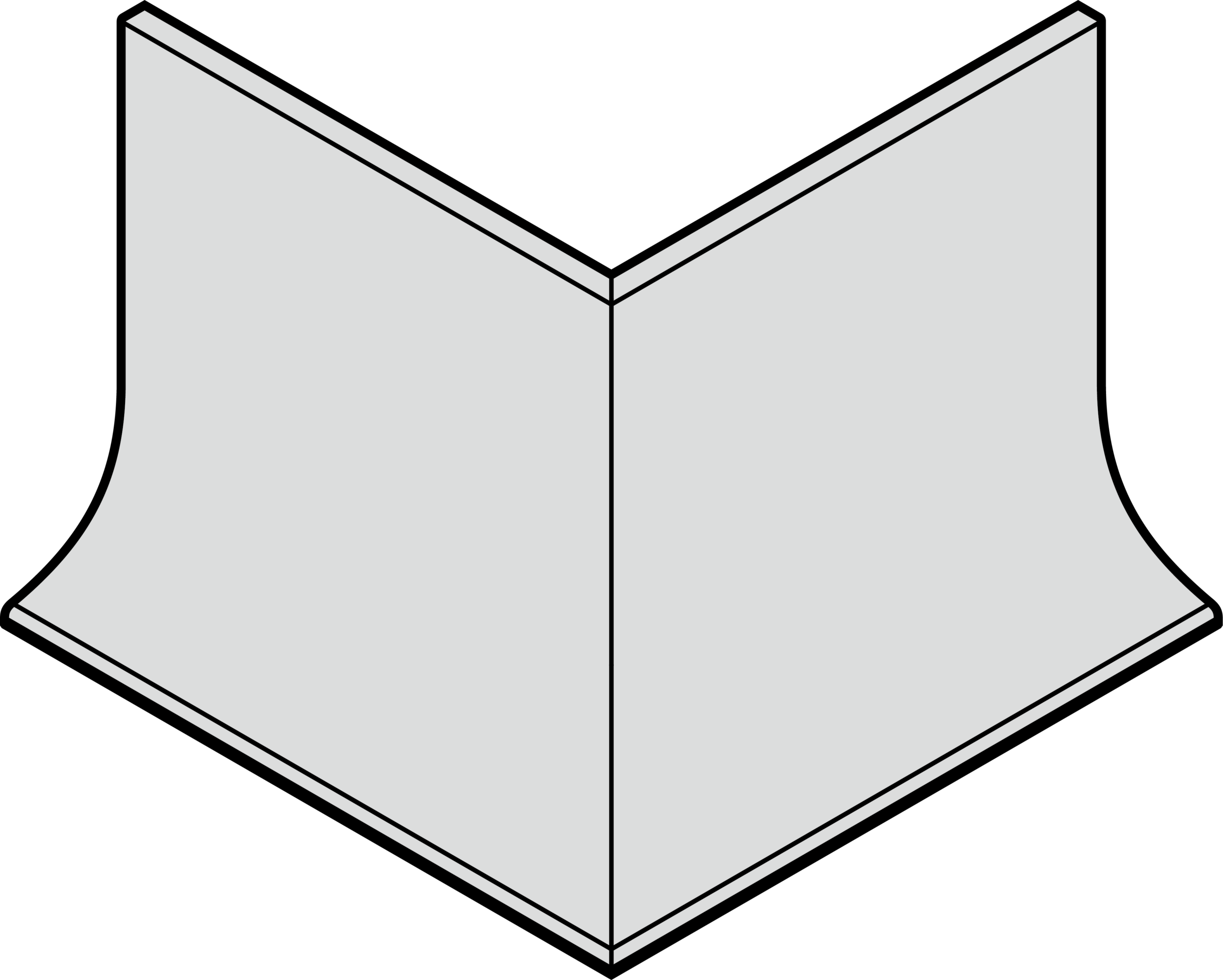

| Clean Line 100-30R Outside Corner |
|
100x100mm | 2 pieces | × | ||

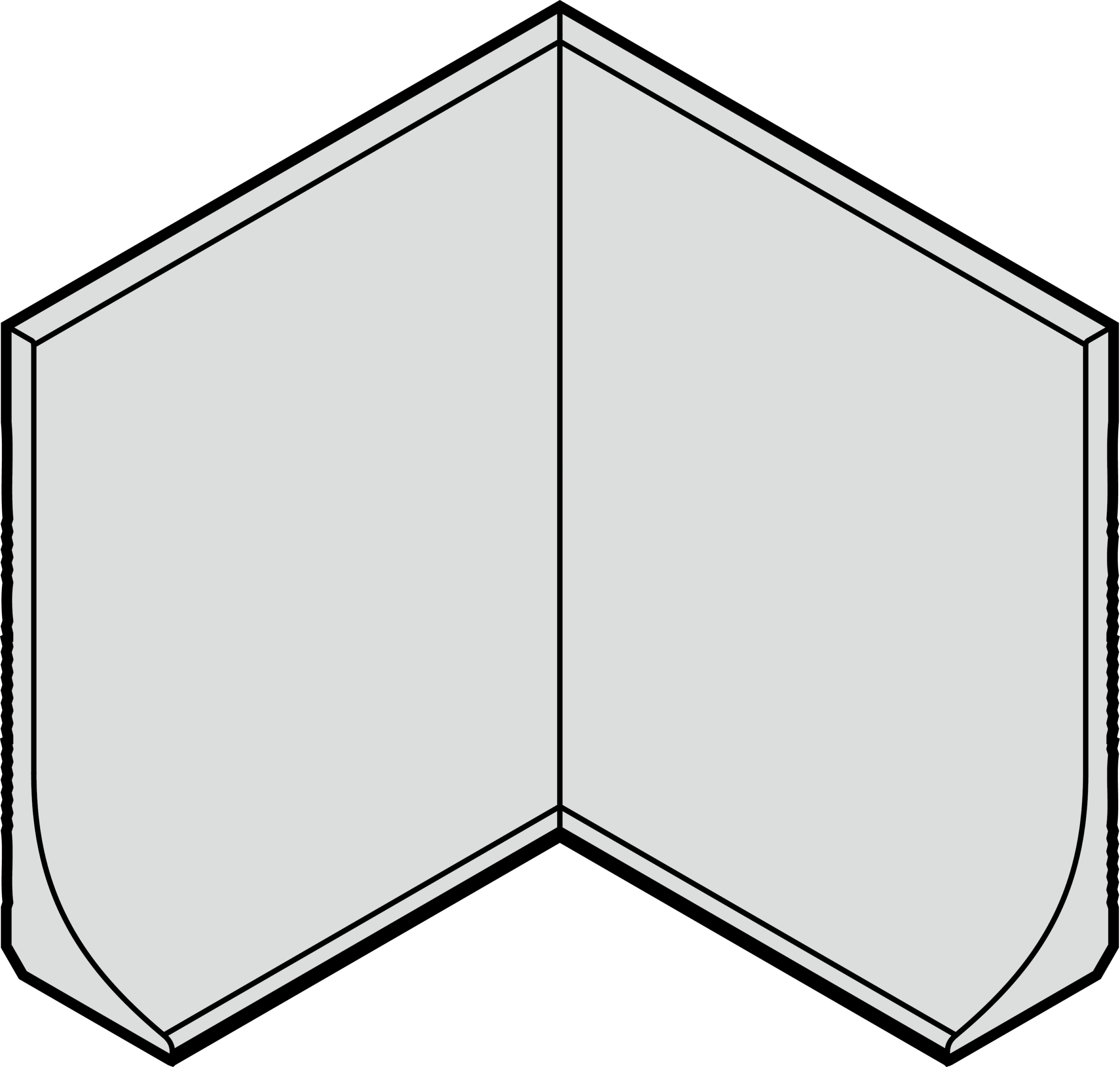

| Clean Line 100-30R Inner Corner |
|
100x100mm | 2 pieces | × | ||

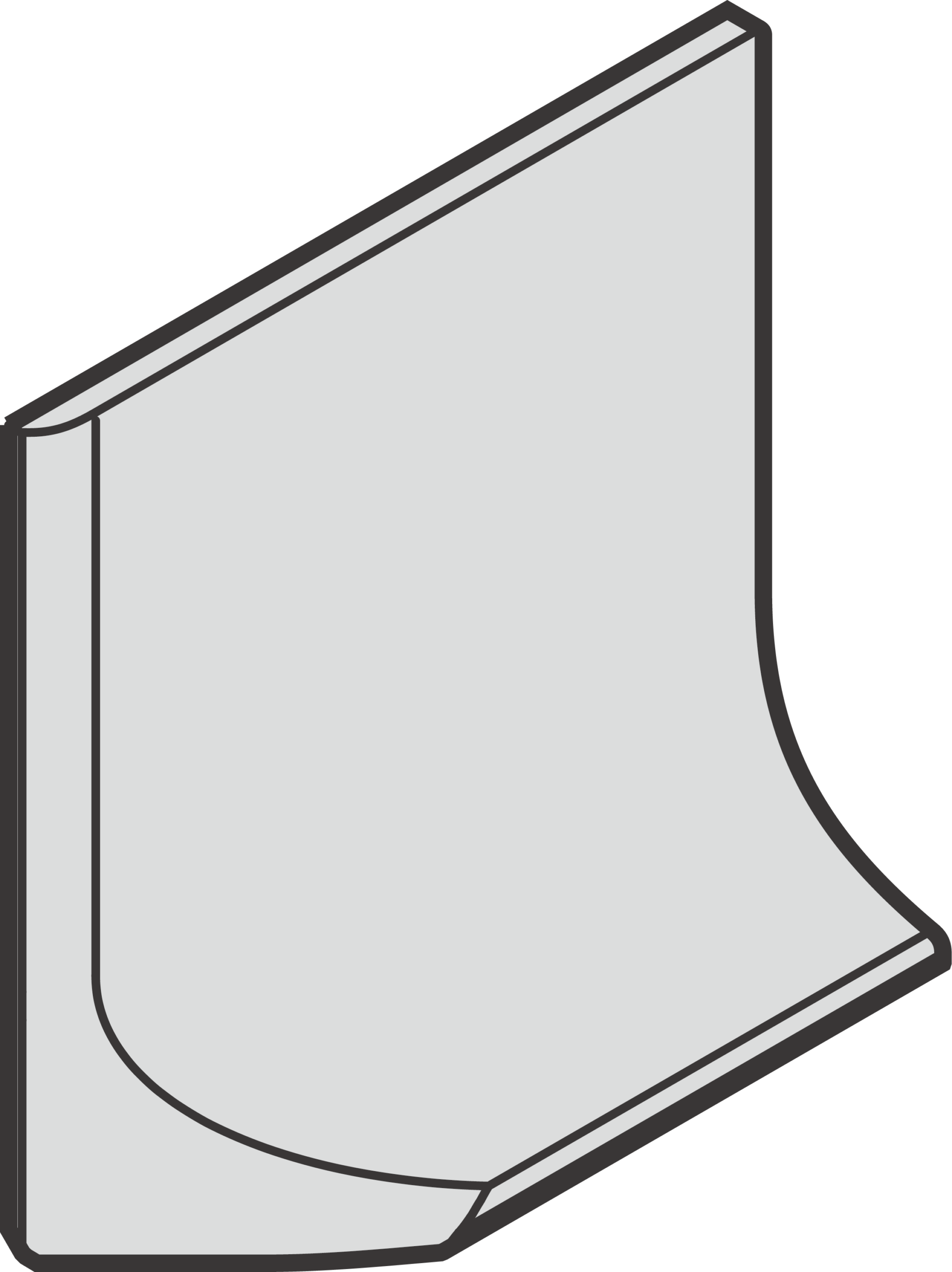

| Clean Line 100-30R Left End |
|
100x100mm | 2 pieces | × | ||

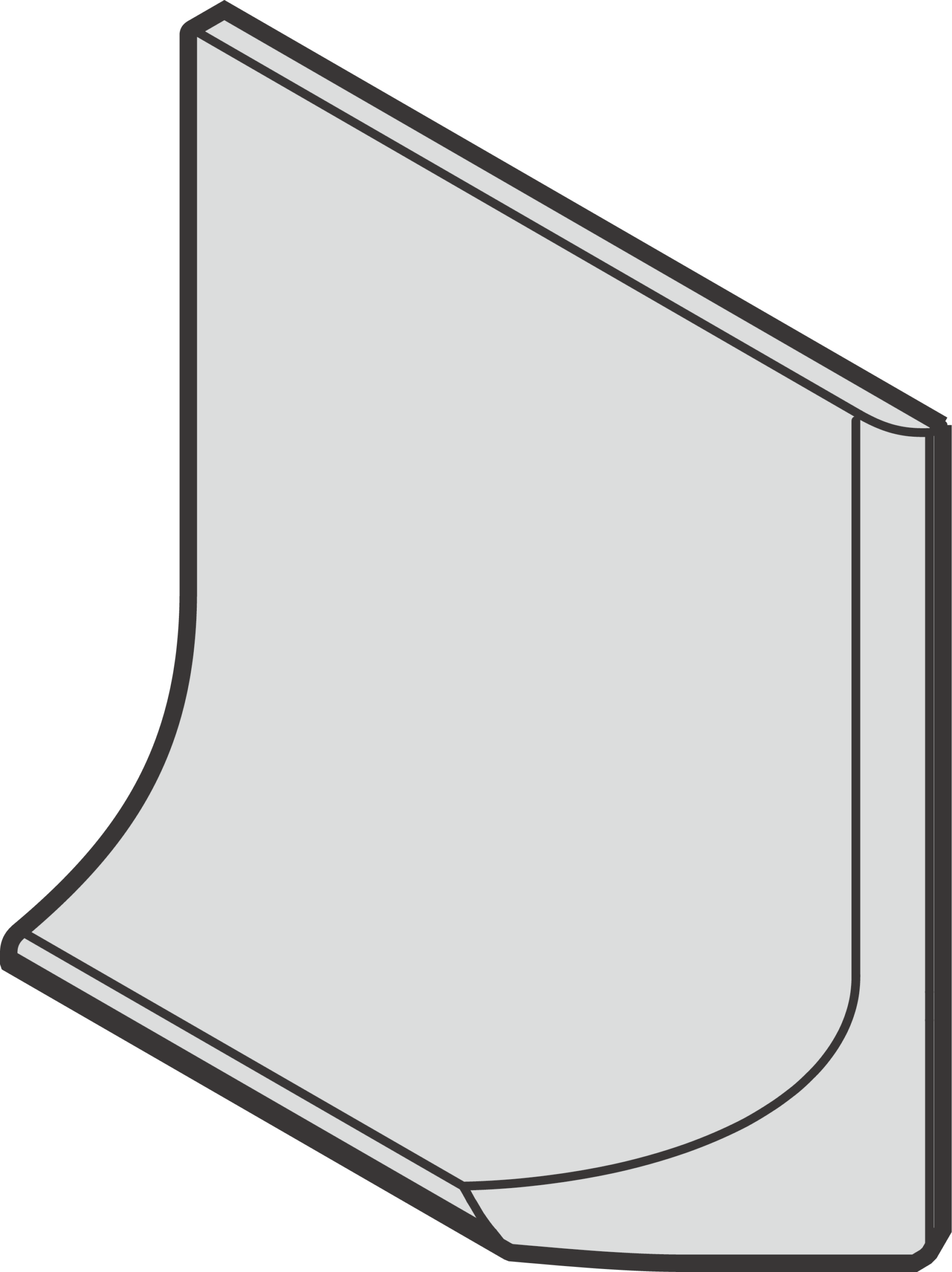

| Clean Line 100-30R Right End |
|
100x100mm | 2 pieces | × |
