WeatherTight for windows
Heat shielding / Vapor permeable / Waterproof
Prevent water ingress at the window sill. Three sizes options for differrent frame engagement up to 43mm, 53mm, and 75mm.
Window Sill Pan Flashing
10-year warranty / Material: PE (Polyethylene)
・Prevents water ingress at the window sill.
・Three sizes options for different frame engagement: up to 43mm, 53mm, and 75mm.

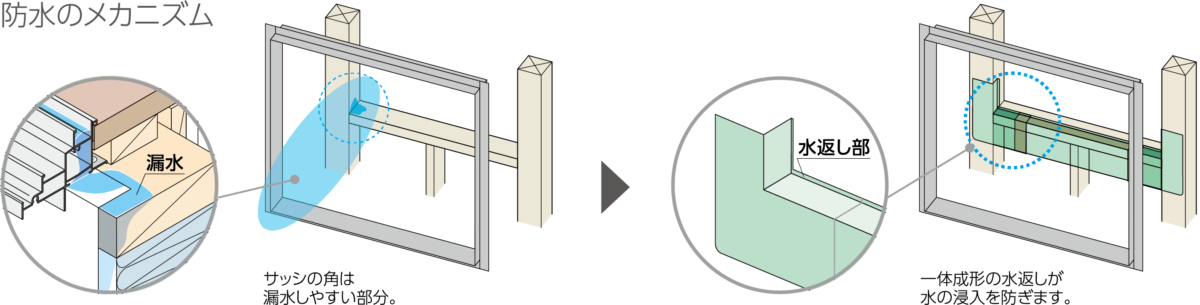

Intergrated Water Ingress Prevention
Window corners are generally prone to rainwater leakage, and secondary waterproofing (sheets and tape) may not be enough to stop the water. Since WEATHERTIGHT for Windows has a back dam, even if water enters the corner, it is discharged outside the secondary waterproofing.
Variety of options to Match Different Frame Sizes
With the advancement of high‑insulation and energy‑efficient housing, window systems have become higher in performance, increasing both frame thickness and engagement depth.
WEATHERTIGHT for Windows offers 3 width options to suit different frame sizes.
Product Specifications (for Windows)
| Product Name | Engagement Depth | H x L x Pan Area (Depth x Back Dam Height) |
Code | Package Contents | Single Piece Shipment |
|---|---|---|---|---|---|
| Middle Member 43 | ~43mm | 130 X 1,700 X (43 X 10mm) | WTS43 | 20 pcs. | 〇 |
| Corner Member 43 | 205 X 460 X (43 X 10mm) | WTSK43 | 20 sets | 〇 | |
| Middle Member 53 | ~53mm | 130 X 1,700 X (53 X 10mm) | WTS53 | 20 pcs. | 〇 |
| Corner Member 53 | 205 X 460 X (53 X 10mm) | WTSK53 | 20 sets | 〇 | |
| Middle Member 75 | ~75mm | 130 X 1,700 X (75 X 10mm) | WTS75 | 20 pcs. | 〇 |
| Corner Member 75 | 205 X 460 X (75 X 10mm) | WTSK75 | 20 sets | 〇 |
-Timestamps-
00:23～Middle Member Installation
00:36～Corner Member Installation
00:58～Window Frame Installation
Handling Precautions
・Store indoors, avoiding high temperature and high humidity.
・The product may deform at high temperatures. Keep away from fire or hot objects.
・Keep stored indoors and out of direct sunlight prior to installation.
・Always follow the standard installation manuals.
・Do not force or over-bend the product. This may cause stress whitening (discoloration) or cracking.
