WeatherTight for pipes
Heat shielding / Vapor permeable / Waterproof
High-elasticity resin used in the center enhances adhesion to the pipe, maintaining a reliable waterproof effect. Available in 6 sizes tailored to various pipe diameters.

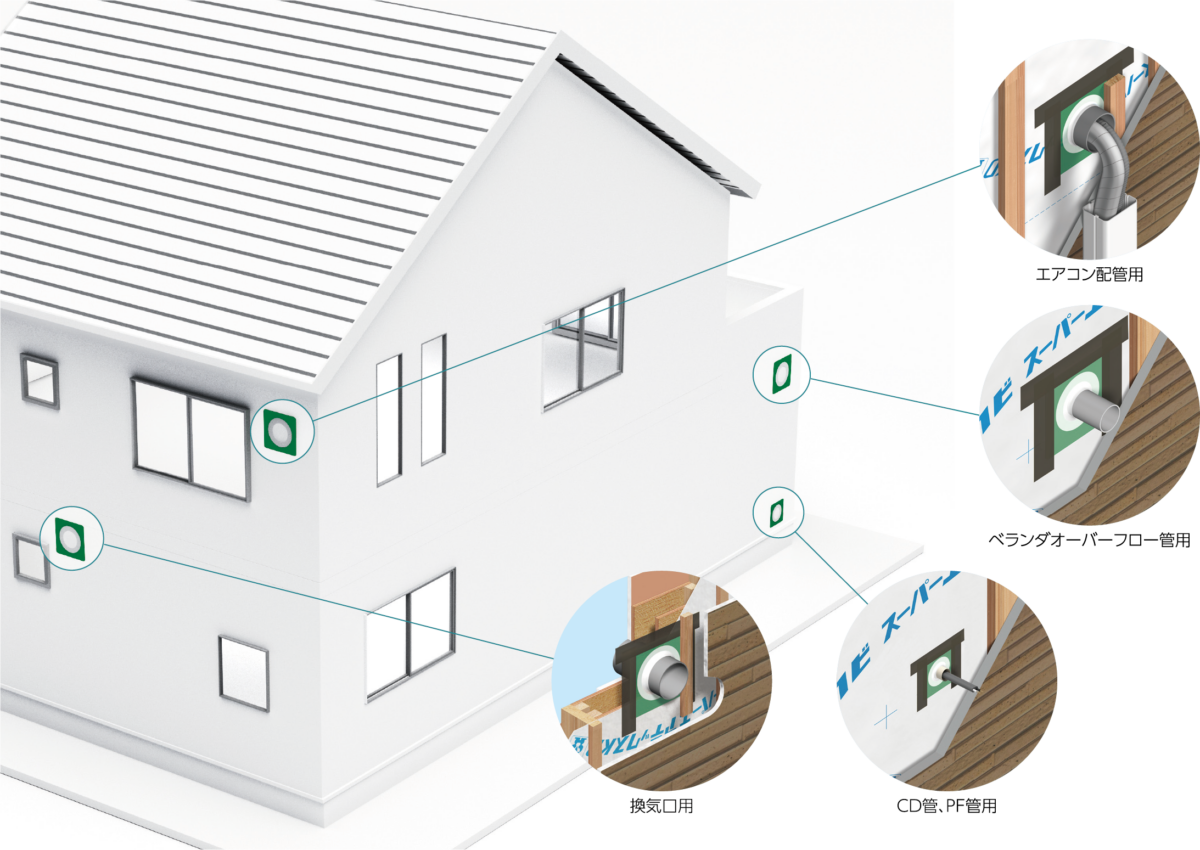

Pipe and Exterior Wall Penetration
10-year warranty / Material: PE (Polyethylene)
・Waterproofing for pipes penetrating exterior walls.
・Uses highly flexible elastic resin at the center eliminating the need for conventional waterproof tape or putty around the pipe.
Not applicable for spiral products and similar pipes with uneven surfaces.

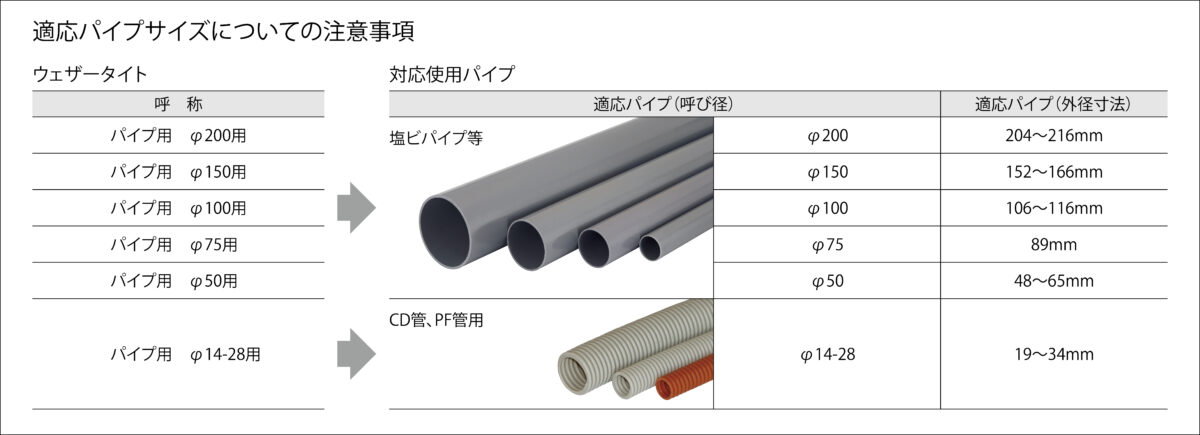

・Available in six sizes to match various pipe diameters.

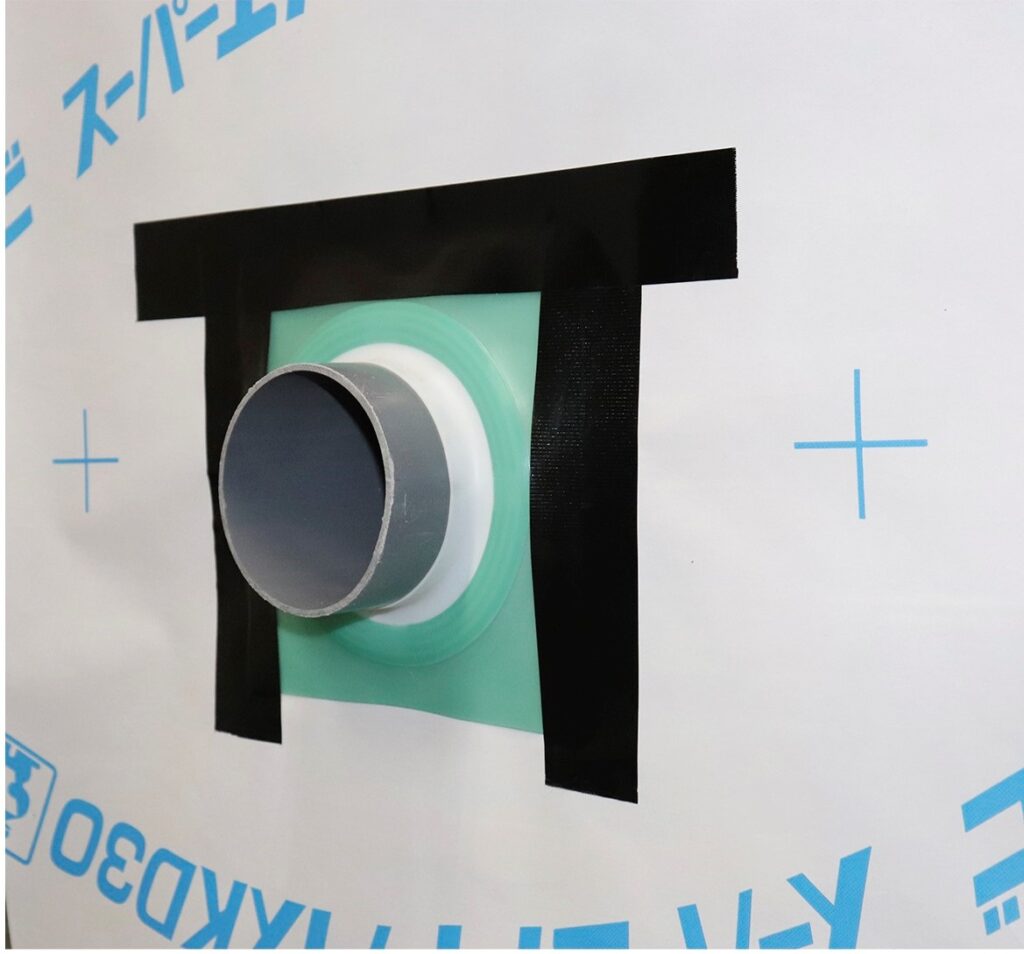

Waterproof Tape Around The Pipe No Longer Required
Flexible elastic resin tightly secures around the pipe, creating a complete seal.
※ For spiral ducts or similar surfaces with irregularities, separate waterproof tape application around the pipe is required.
Sample Installation Diagrams

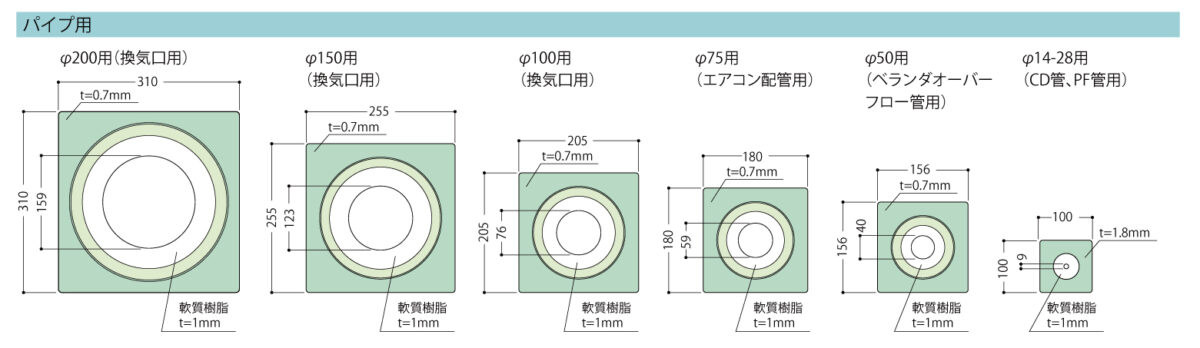

Product Specifications (for Pipes)
| Name | Width x Height | Code | Package Contents | Single Piece Shipment |
|---|---|---|---|---|
| Φ200 Flashing | 310 x 310 mm | WTP200 | 40 pcs. | 〇 Yes |
| Φ150 Flashing | 255 x 255 mm | WTP150 | ||
| Φ100 Flashing | 205 x 205 mm | WTP100 | ||
| Φ75 Flashing | 180 x 180 mm | WTP75 | ||
| Φ50 Flashing | 156 x 156 mm | WTP50 | ||
| Φ14-28 Flashing | 100 x 100 mm | WTP1428 |
-Timestamps-
00:07～ Φ50,75,100,150,200 (One-Side Waterproofing Tape) Installation
00:38～ Φ50,75,100,150,200 (Double-Side Waterproofing Tape) Installation
01:24～ Φ14-28 (for CD/PF Conduit) Installation
Handling Precautions
・Store indoors, avoiding high temperature and high humidity.
・The product may deform at high temperatures. Keep away from fire or hot objects.
・Keep stored indoors and out of direct sunlight prior to installation.
・Always follow the standard installation manuals.
・Do not force or over-bend the product. This may cause stress whitening (discoloration) or cracking.
