Bathroom Counter Pacott
Bathroom/ Wet Area
A bathroom counter whose top plate can be easily attached and detached with a “snap” (Pacotto).
Developed in response to customers who said, “We want a removable counter that considers cleanability and water drainage.”

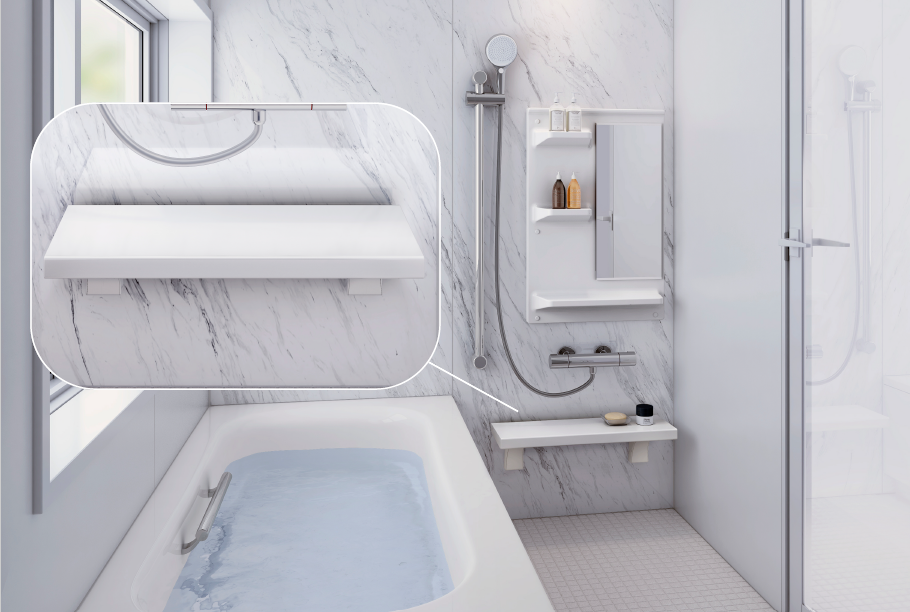

With its simple design, it matches a variety of bathrooms, and because it is easy to remove, cleaning into every corner is possible. Compatible with both conventional bathrooms and unit baths.
Born from the desire for a counter that is easy to remove and effortless to clean.
Features
★ Easy attachment and removal of the top plate, allowing thorough cleaning
★ Anyone can easily install it in about 30 minutes with a simple “snap”
★ Can be retrofitted to existing bathrooms

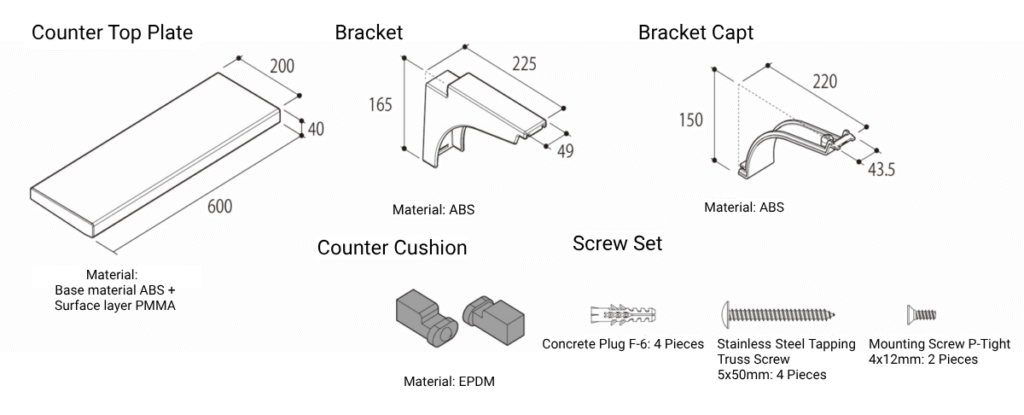

Product Drawing
Product Specifications
| Model Name | Dimensions | Code | Color | Package Contents | Single Piece Shipment |
|---|---|---|---|---|---|
| Pacott | 600×240 | PCT60W | White | 1 set ※1 | ✕ |
| Pacott Unit Bath Hardware Set | – | SFUBK | – | 1 set ※2 | ✕ |
※1: Counter top plate ×1, Brackets ×2, Bracket caps ×2, Counter cushions ×4, Pacott screw set, Warning label, Installation manual, User manual
※2: Stainless steel mechanical bath nuts M6 ×6, Stainless steel insert nuts PL6 ×6, Stainless steel pan head sems screws 6×50mm ×4
※ For installation in a unit bath, the separately sold “Shelfine Unit Bath Hardware Set” is required.
※ When ordering the Shelfine Unit Bath Hardware Set, a separate packing fee of ¥3,000 will be charged whether shipped alone or included in the same order as the main unit.
Installation Manual
1: Drill holes in the wall ➤
2: Insert plugs into the drilled holes ➤
3: Apply sealing material to the bracket ➤
4: Install the bracket ➤
5: Attach the bracket cap ➤
6: Check the level of the left and right brackets ➤
7: Install the top plate ➤
8: Completed!
Precautions for Use
・ Sealing material is required separately. Please prepare it. If procuring the sealant on site, use a silicone-based type containing a mold-resistant agent. White is recommended for the sealant color.
・ Install on bathroom walls only.
・ Do not use in sauna baths or places where the bathroom temperature exceeds 50°C.
・ Do not use outdoors.
・ Do not install on damp substrates.
・ Do not install in areas exposed to direct sunlight.
・ After installation, be sure to confirm that the product is completely secured.
If not firmly fixed, it may wobble or fall and cause injury.
・ Do not modify or change the intended use of the product.
・ Load capacity is 10 kg. Do not exceed a total weight of 10 kg on the shelf.
・ Do not lean on, step on, or sit on the counter. It may slip, cause injury, or break the counter.
Substrate Confirmation
・ For conventional bathrooms, applicable substrates are:
① Tile or tile with our company’s Alparage / Mirror-like Alparage installed on top
② Moisture-resistant plywood with our Bath Panel installed on top
・ For unit baths, applicable substrates must be walls with sufficient strength such as PVC-coated steel sheet or PVC-coated steel sheet backed with gypsum board.
Installation is not possible if the unit bath wall has foam insulation backing.
・ Do not install if the unit bath wall thickness is less than 6mm. Insufficient strength may result, causing detachment and injury.
・ If the unit bath wall thickness is between 6mm and 30mm, a space of 39mm or more behind the unit bath wall is required.
